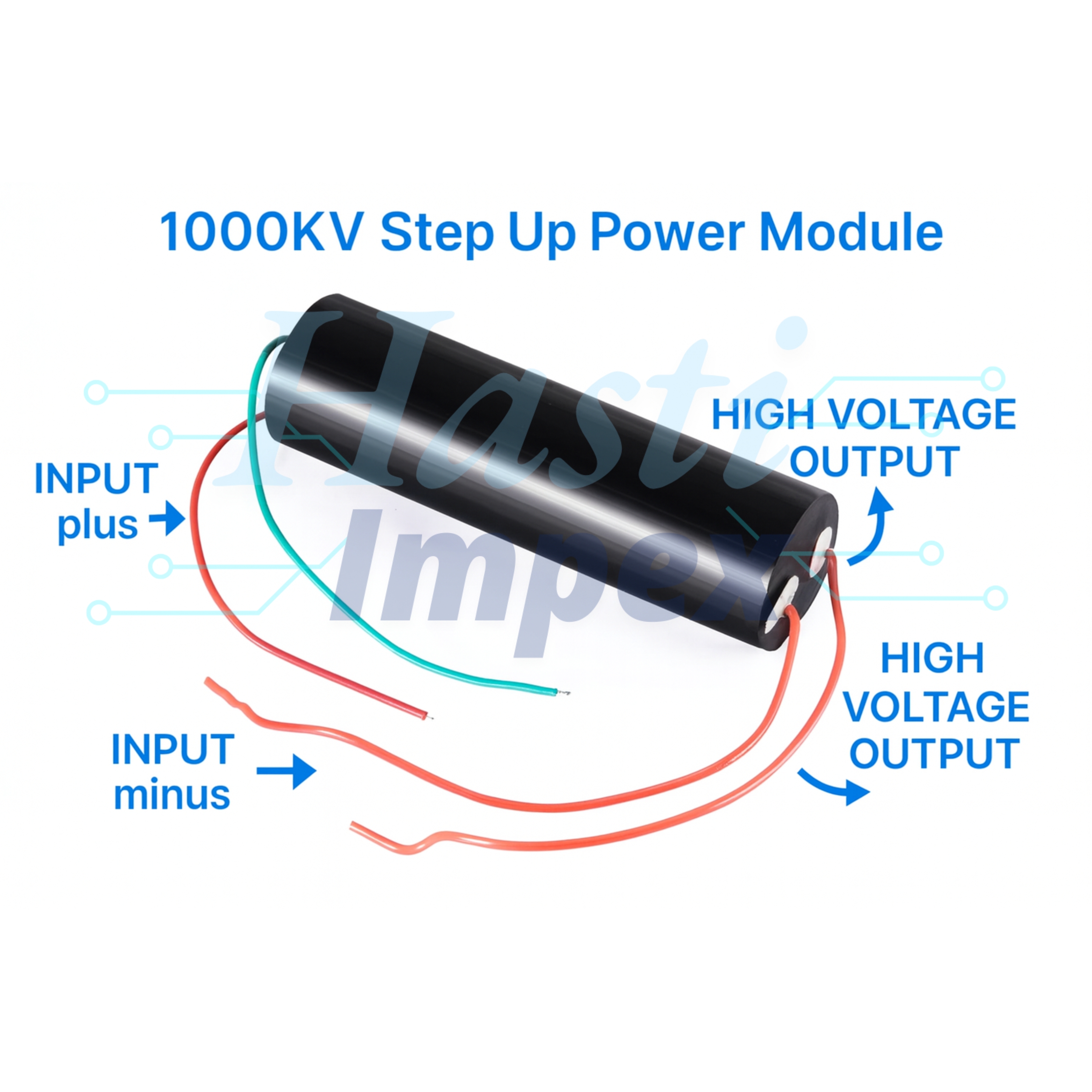

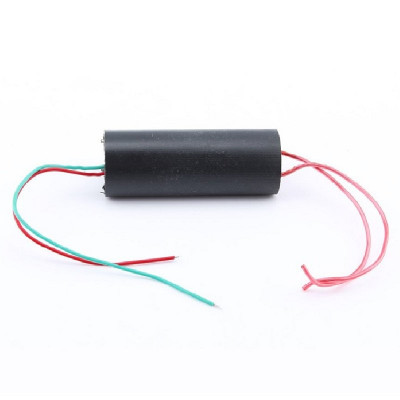

1000KV Step Up Power Module
Description:
1000kV Step-Up Power Module is a sophisticated and high-performance device designed to convert low-voltage DC input into extremely high-voltage DC output, up to an impressive 1000kV (kilovolt). This module is used in specialized applications that require a substantial voltage for testing, research, and industrial processes. It is suitable for industries like electrical testing, medical imaging, scientific experiments, and particle accelerators, among others.
With its high-voltage conversion capabilities, the 1000kV step-up module is often used in power systems, dielectric testing, and particle physics, where large electric potentials are necessary to perform certain operations. This module is engineered with precision to ensure that the high voltage is delivered safely, efficiently, and with precise control.
Features:
1. High Output Voltage (1000kV)
2. Input Voltage Range
3. High Efficiency Conversion
4. Stable and Precise Output Control
5. Protection Features
6. Output Characteristics
7. Cooling and Thermal Management
8. Control and Monitoring
9. Temperature and Environmental Resistance
10. Regulatory Compliance
Specifications:
| Output Voltage | 1000 kV |
| Current | Low current at high voltage |
| Output Frequency | 50Hz to 60Hz |
| Efficiency | 70% to 90% |
| Weight | 1 kg to 10 kg |
