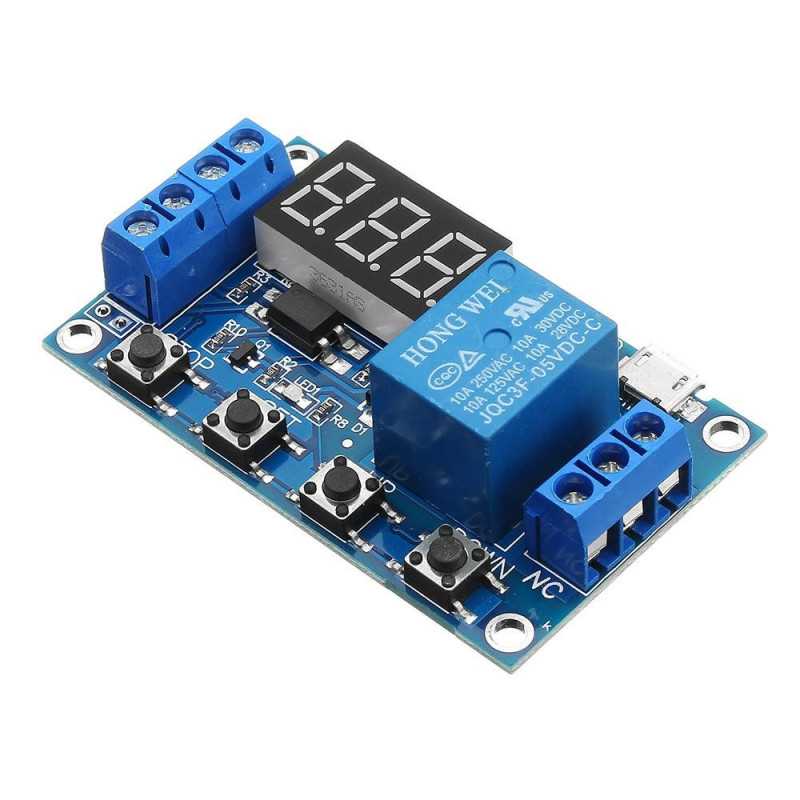

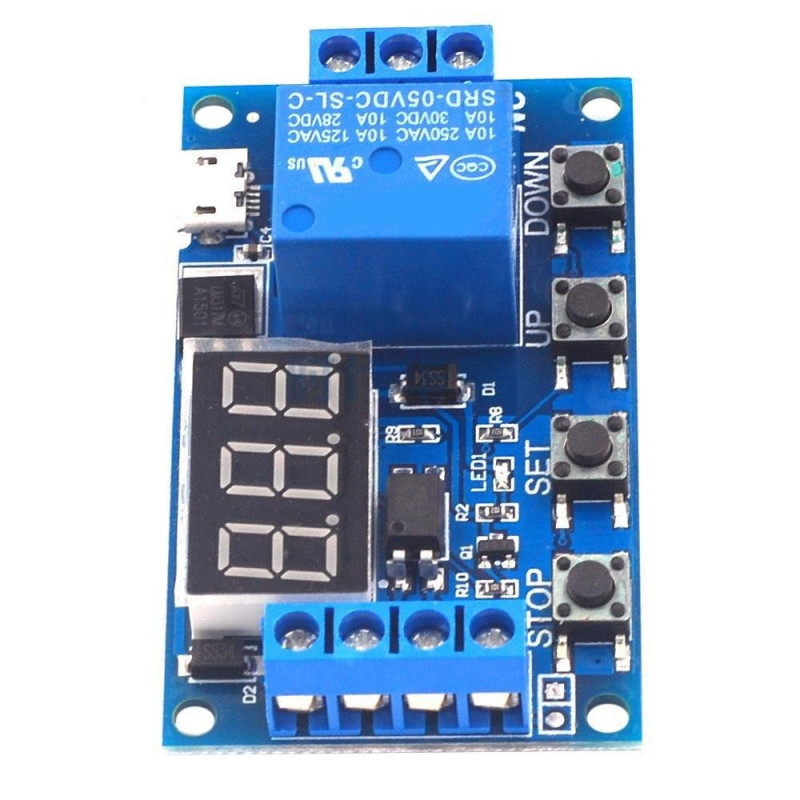

6-30V 1-Channel Power Relay Module with Adjustable Timing Cycle
Description:
6-30V 1-Channel Power Relay Module with Adjustable Timing Cycle is a versatile and efficient relay module designed to control electrical devices in a variety of applications. It allows you to switch higher-power circuits (AC or DC) using low-voltage control signals, making it ideal for use in automation systems, control panels, or hobbyist projects. The module features an adjustable timing cycle, providing flexibility in its operation by allowing users to control how long the relay remains activated.
Relay modules are often used in Arduino, Raspberry Pi, and other microcontroller-based projects to control devices such as motors, lights, alarms, and other electrical appliances. The addition of an adjustable timing cycle adds an extra layer of control, allowing users to set specific on/off durations without needing complex programming.
Features:
1. Wide Voltage Range (6-30V)
2. Adjustable Timing Cycle
3. 1-Channel Relay
4. High Power Control
5. Optocoupler Isolation
6. Simple Control Interface
7. LED Indicators
8. Wide Application Range
9. Low Power Consumption
10. Durable and Reliable

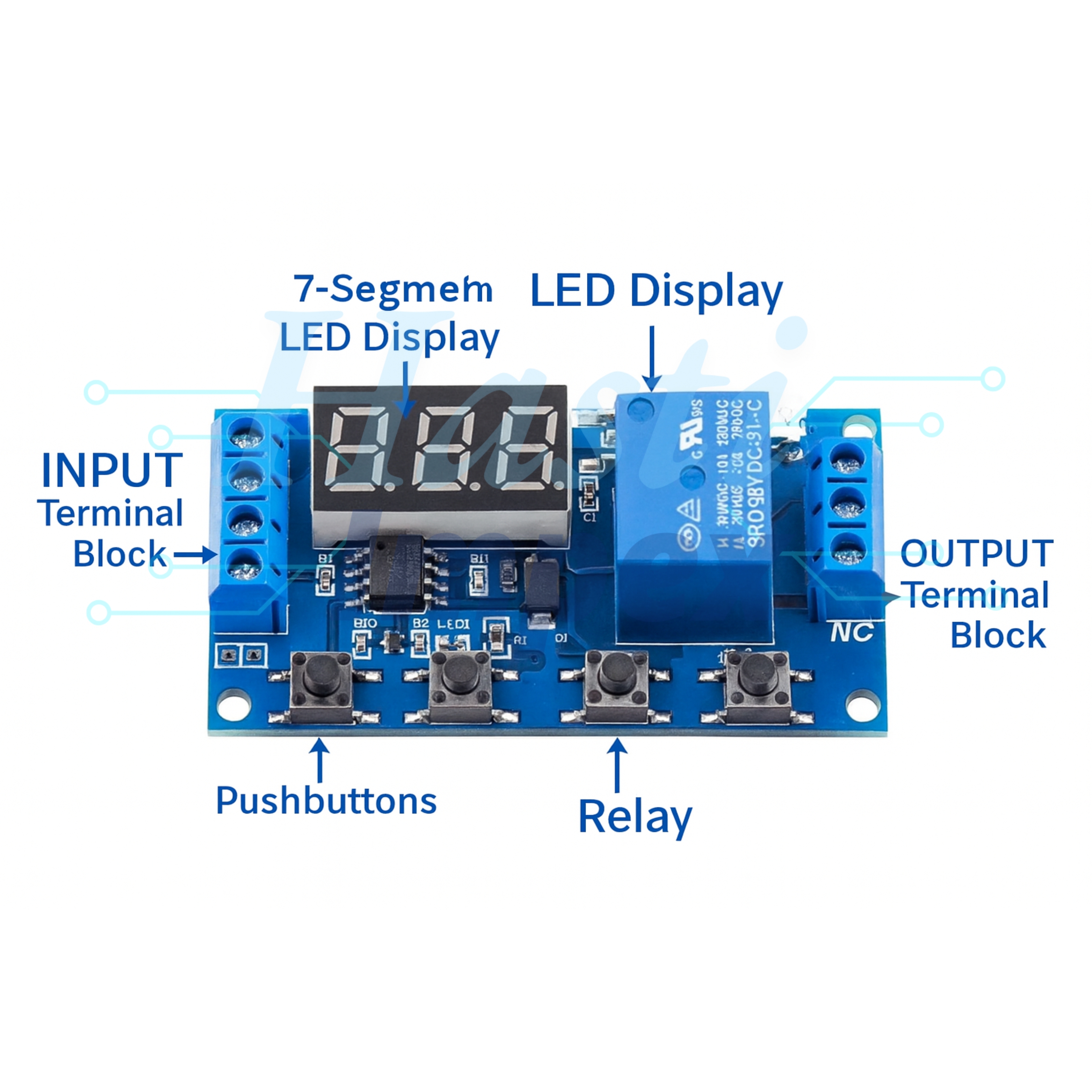

Diagram:
Specifications:
| Control Voltage (VCC) | 6V - 30V DC |
| Relay Type | Mechanical relay |
| Maximum Switching Voltage | 250V AC / 30V DC |
| Maximum Switching Current | 10A at 250V AC, or 10A at 30V DC |
| Input Signal | 3.3V or 5V |
| Status LED | LED indicator |
| Relay Activation | Normally Open (NO) to Closed |
| Standby Current | 5-10mA |
| Relay Activation Current | 50-100mA |
| Temperature Range | -20°C to +85°C |
| Dimensions | 45mm x 35mm x 18mm |
