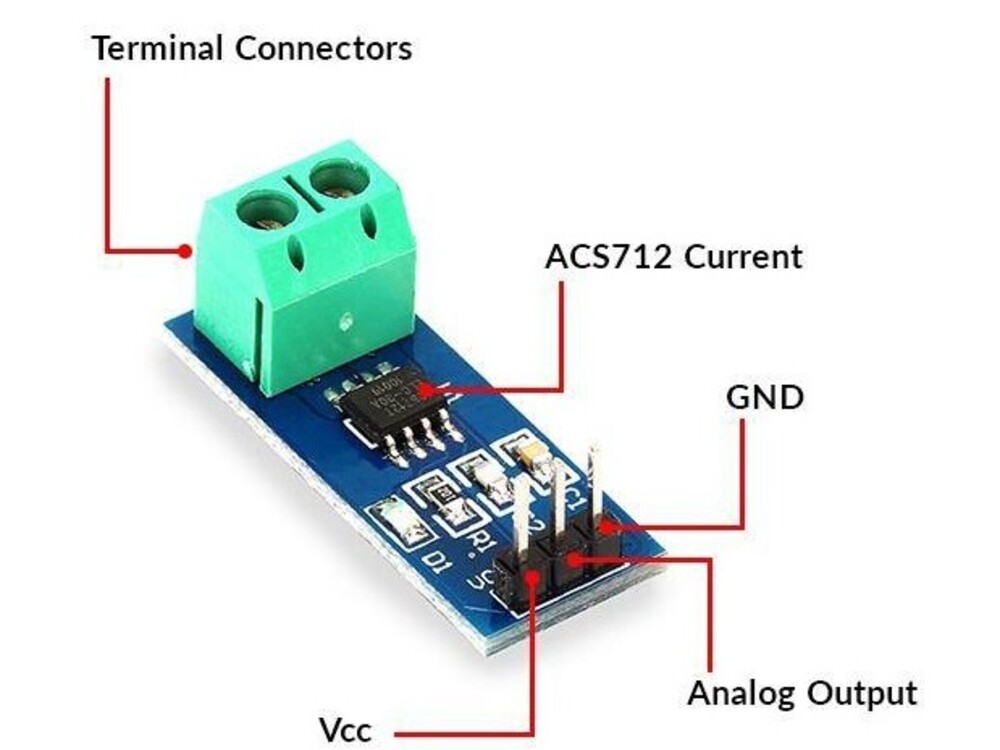

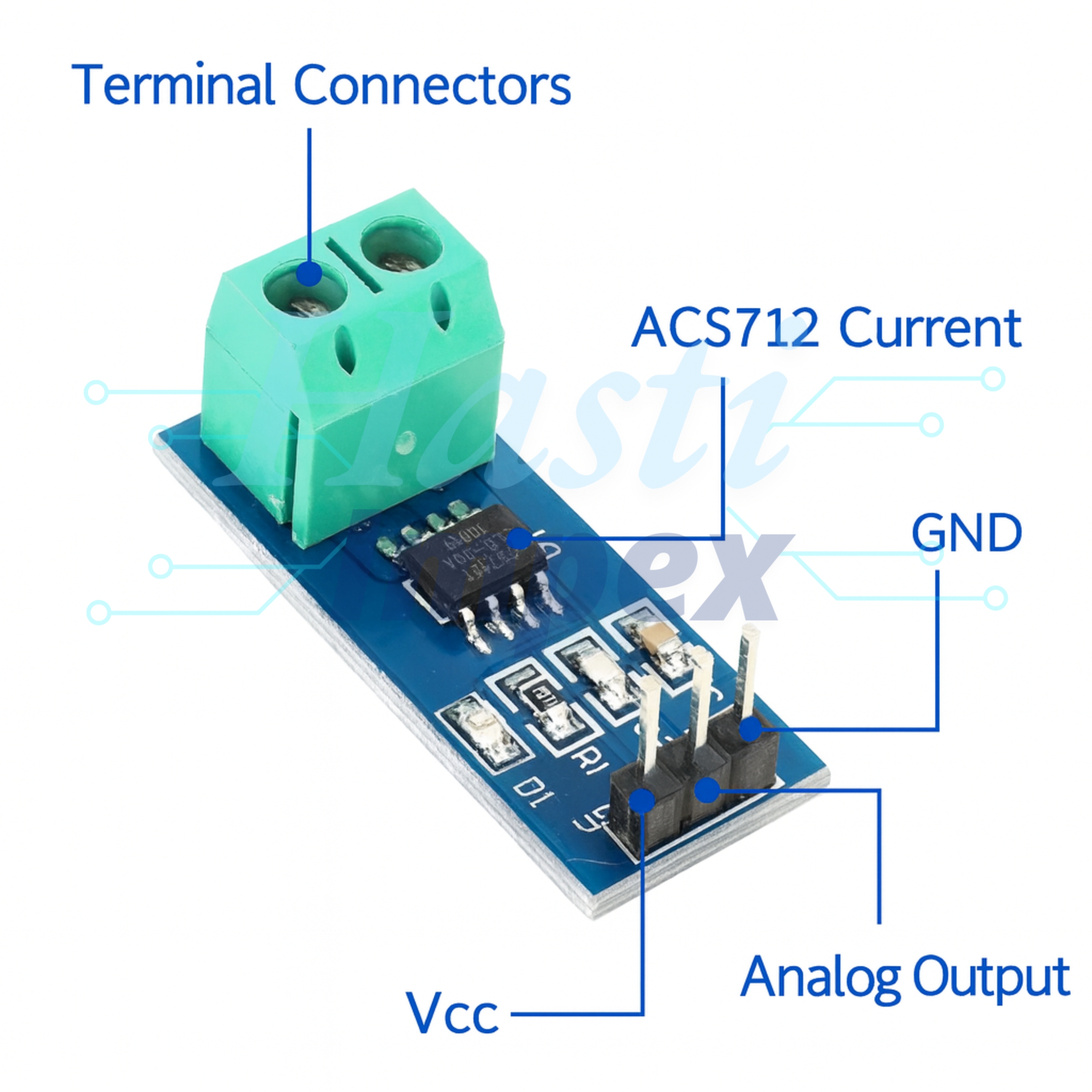

ACS712 - 5A Range Current Sensor Module
Description:
The ACS712 is a hall-effect based current sensor module that allows you to measure the current flowing through a conductor. The "5A Range" variant specifically is designed to measure currents up to 5 amps. Here's how you might use it:
-
Current Measurement: The primary function of the ACS712 module is to measure current. You can use it to monitor the amount of current flowing through a circuit. This is particularly useful for projects where you need to monitor power consumption or detect overcurrent conditions.
-
Non-Invasive Measurement: Unlike traditional current sensors that require you to break the circuit to insert the sensor, the ACS712 is non-invasive. You simply pass the current-carrying wire through the sensor's central hole, and it will measure the current without disrupting the circuit.
-
Analog Output: The ACS712 module provides an analog output voltage proportional to the measured current. This voltage can be read by an analog-to-digital converter (ADC) on a microcontroller, such as Arduino, to obtain the current value.
-
Overcurrent Protection: By continuously monitoring the current using the ACS712 module, you can implement overcurrent protection mechanisms in your projects. For example, you can set thresholds and trigger actions (such as shutting down a system) when the current exceeds a certain limit.
-
Power Monitoring: You can use the ACS712 module to monitor power consumption in various devices or systems. By integrating the measured current over time, you can calculate the total energy consumed.
-
Feedback Control: In systems where precise current control is necessary, such as motor control applications, you can use the ACS712 module to provide feedback for closed-loop control algorithms.
To use the ACS712 - 5A Range Current Sensor Module with an Arduino or similar microcontroller, you typically connect the module's VCC and GND pins to the corresponding power and ground pins on the microcontroller, and the OUT pin to one of the analog input pins. Then, in your Arduino code, you read the analog voltage from the sensor and convert it to a current value using calibration factors provided in the datasheet or through experimentation.
