MQ-131 Ozone Gas Detector Sensor Module
Description:
The MQ-131 ozone gas sensor module is specifically designed to detect the presence of ozone (O3) gas in the air. Ozone is a highly reactive gas that is both beneficial and harmful, depending on its concentration and location. Here's how to effectively use the MQ-131 sensor:
-
Understanding the Sensor: The MQ-131 sensor operates based on the principle of a chemical reaction between ozone molecules and the sensor's electrodes, resulting in a change in electrical conductivity. This change is then measured and interpreted as the presence of ozone.
-

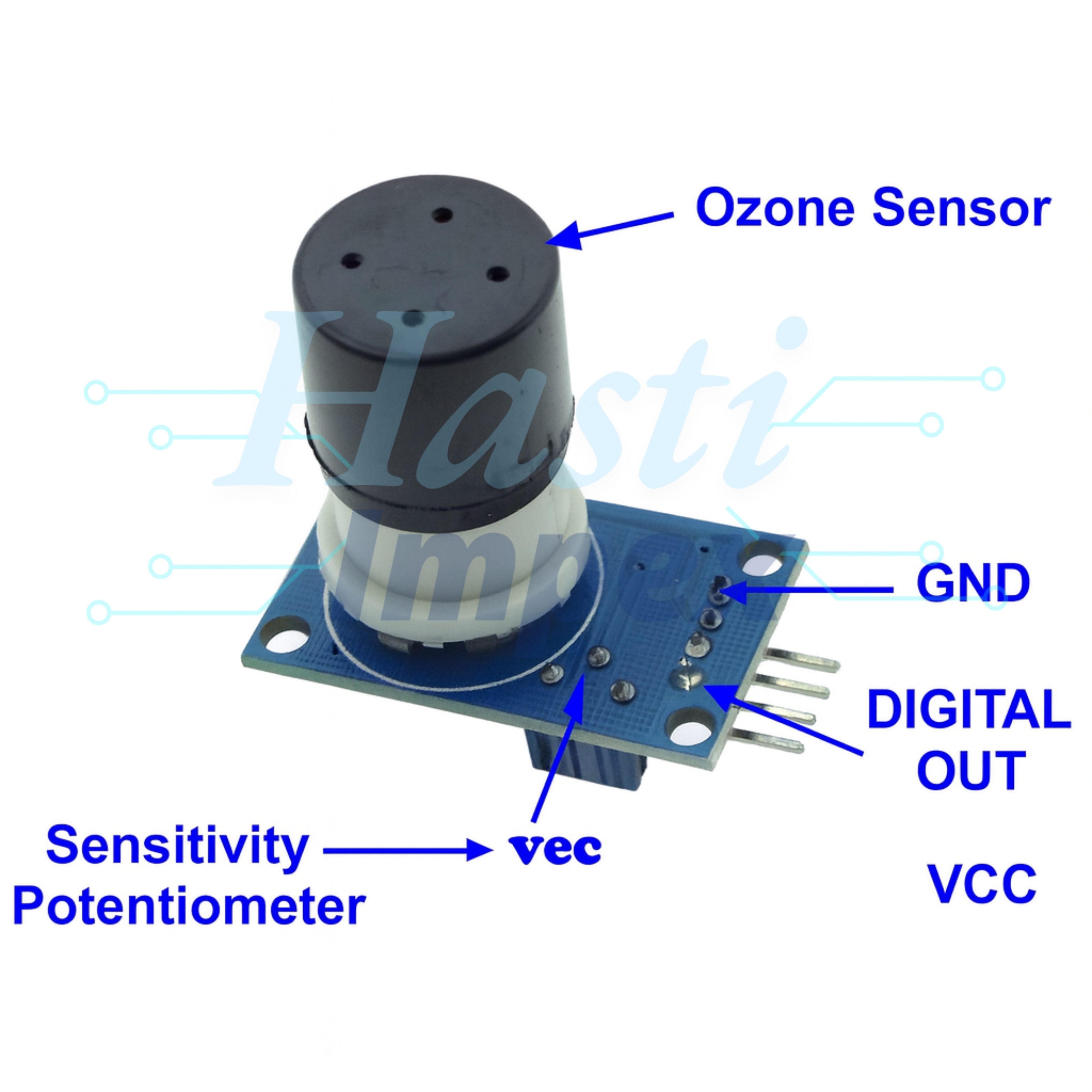

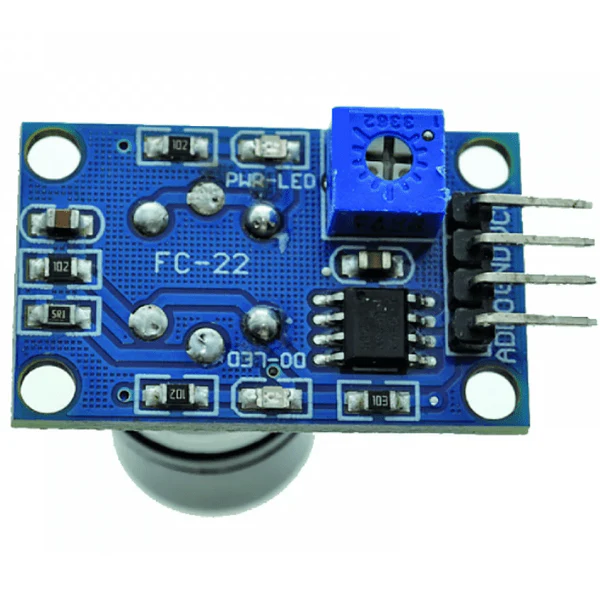

Connections: The MQ-131 sensor typically has four pins: VCC (power supply), GND (ground), AOUT (analog output), and DOUT (digital output). Connect VCC to a suitable power supply (usually 5V), GND to ground, and then either AOUT or DOUT depending on your preferred output type.
-
Calibration: Calibration may be necessary before use. Expose the sensor to clean air for a certain period to establish a baseline reading. Calibration procedures may vary depending on the specific sensor and application, so refer to the manufacturer's instructions.
-
Powering Up: Apply power to the sensor module. Allow a warm-up time (usually a few minutes) for the sensor to stabilize and provide accurate readings.
-
Reading Output: If connected to the AOUT pin, you'll receive an analog voltage output proportional to the concentration of ozone in the air. If connected to the DOUT pin, you'll receive a digital signal that switches from low to high when the ozone concentration exceeds a certain threshold.
-
Interpretation: Interpret the sensor output based on your project requirements. You may need to use different thresholds or calibration curves for accurately determining ozone concentrations.
-
Safety Considerations: Ozone can be harmful to health, especially at high concentrations. Handle the sensor with care and avoid exposure to high concentrations of ozone. Ensure proper ventilation during testing and avoid using the sensor in potentially hazardous environments without appropriate safety precautions.
-
Integration: Integrate the sensor with a microcontroller (e.g., Arduino, Raspberry Pi) for data processing, display, or further action based on the detected ozone concentrations.
