360 Degree Rotary Encoder Module
Description:
360-degree rotary encoder module works by converting mechanical rotational movement into electrical signals. These signals are then processed by a microcontroller or other digital system to interpret the angle or position of the rotating shaft. The module typically uses optical or mechanical sensing technology to provide feedback on the rotational state, enabling users to measure angular displacement, detect direction, or even count the number of rotations.
This module is designed to work in a continuous, unidirectional or bidirectional manner, allowing it to rotate through a full 360-degree range (or even more). It is perfect for applications where precise rotational control and feedback are needed.
Features:
1. 360-Degree Rotation
2. High Resolution
3. Bidirectional Rotation Detection
4. Optical/Mechanical Sensing Technology
5. Output Signals
6. Compact Size
7. Durability and Longevity
8. Low Power Consumption

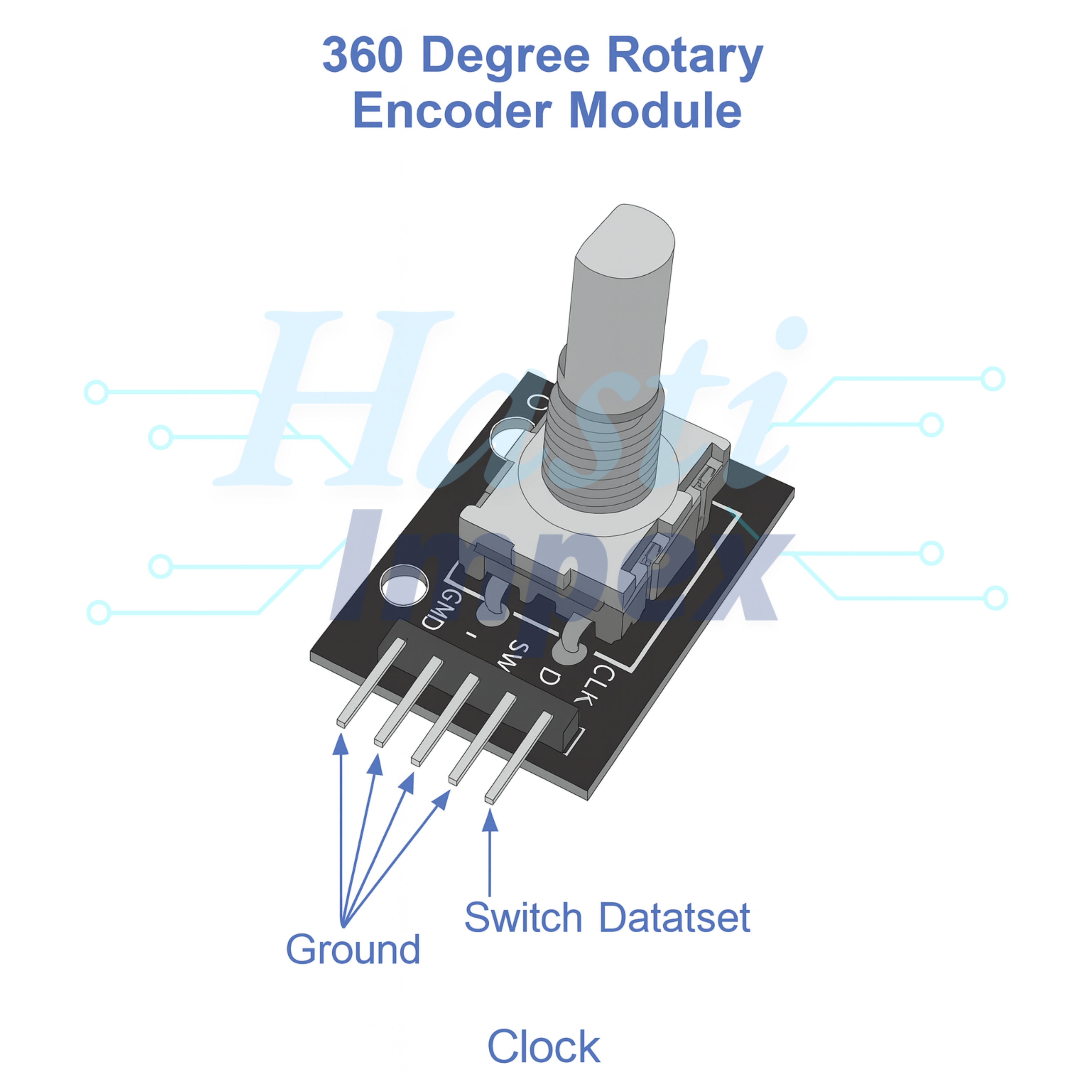

Diagram:
Specifications:
| Rotation Range | 360 Degrees |
| Sensing Technology | Optical or Mechanical |
| Output Type | Digital Pulse Output |
| Resolution | 100-256 pulses |
| Operating Voltage | 3.3V to 5V DC |
| Current Consumption | less than 10mA |
| Signal Output | A/B quadrature signals |
| Dimensions | 25mm x 25mm x 10mm |
| Weight | 5-20 grams |
