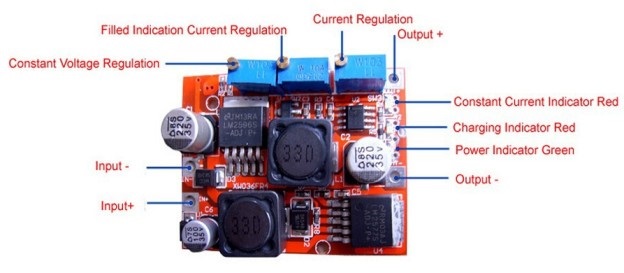

LM2596S & LM2577S DC-DC Adjustable Step-Up and step-down Power Supply Module
Description:
LM2596S and LM2577S are popular DC-DC adjustable step-down (buck) and step-up (boost) power supply modules, respectively, based on the LM2596 and LM2577 voltage regulator ICs. Here's how they are commonly used:
-
Step-Down (LM2596S):
- Voltage Regulation: The LM2596S module is used to step down a higher input voltage to a lower output voltage. It's commonly used to power devices that require a lower voltage than the available input supply.
- Applications: It's commonly used in various electronics projects, including powering microcontrollers, sensors, LEDs, and other low-voltage components.
- Adjustable Output: The output voltage of the LM2596S module can be adjusted using a potentiometer onboard, allowing flexibility in setting the desired output voltage.
-
Step-Up (LM2577S):
- Voltage Boosting: The LM2577S module is used to step up a lower input voltage to a higher output voltage. It's useful in situations where the available input voltage is lower than what's required by the load.
- Applications: It's commonly used in automotive applications, solar-powered systems, battery-powered devices, and other applications where a higher voltage is needed.
- Adjustable Output: Similar to the LM2596S, the output voltage of the LM2577S module can be adjusted using a potentiometer onboard.
Both modules offer the following features:
- Efficiency: LM2596S and LM2577S modules offer good efficiency, helping to minimize power loss during voltage conversion.
- Protection: Some modules may include features such as over-current protection and thermal shutdown to protect the module and connected devices from damage.
- Easy Integration: They are easy to integrate into electronic projects due to their compact size and simple interface.
Overall, LM2596S and LM2577S modules are versatile and widely used in various electronics projects where voltage regulation or voltage boosting is required. They provide a convenient and cost-effective solution for power supply requirements.
