Digital PWM Generator with Display
Description:
Digital PWM (Pulse Width Modulation) Generator with Display is an electronic device used to generate digital PWM signals with adjustable frequency and duty cycle. The device typically includes a digital interface, allowing users to modify parameters like the frequency, duty cycle, and sometimes other waveforms, with real-time feedback shown on a display. This setup is ideal for various applications like signal testing, motor control, dimming LEDs, and other electronics requiring precise control of power output.
Features:
1. Adjustable Frequency and Duty Cycle
2. Real-Time Digital Display
3. Waveform Generation
4. User Interface
5. Output Options
6. Accuracy and Stability
7. Output Power and Load Handling
8. Power Supply
9. Additional Features

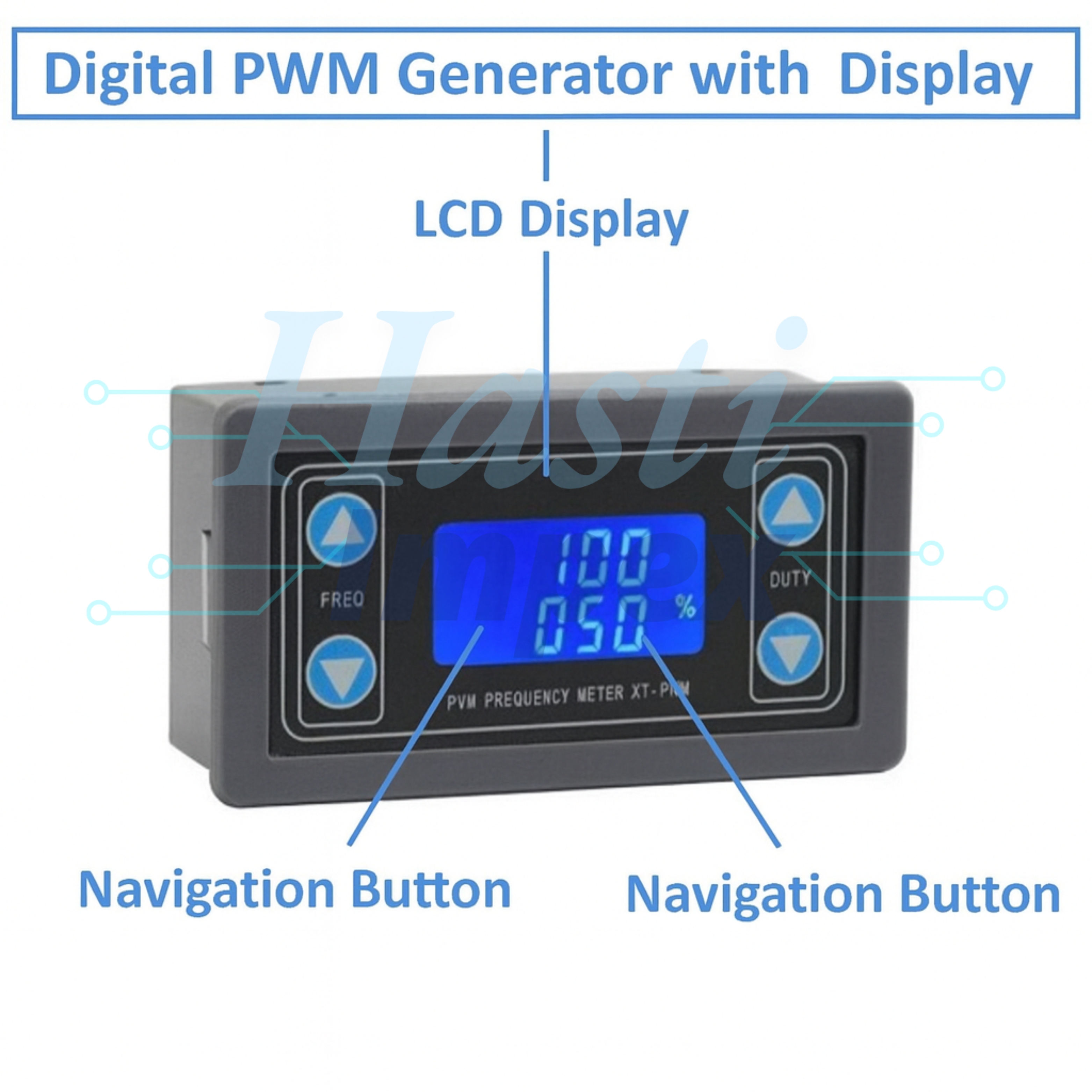

Diagram:
Specifications:
| Model Type | Digital PWM Generator |
| Output Type | Output Type |
| Display Type | LCD or LED display |
| Power Supply | 9V DC to 12V DC |
| Power Consumption | less than 5W |
| Width X Height X Depth | 4 X 2.5 X 2 inches |
| Weight | 200-400 grams |
