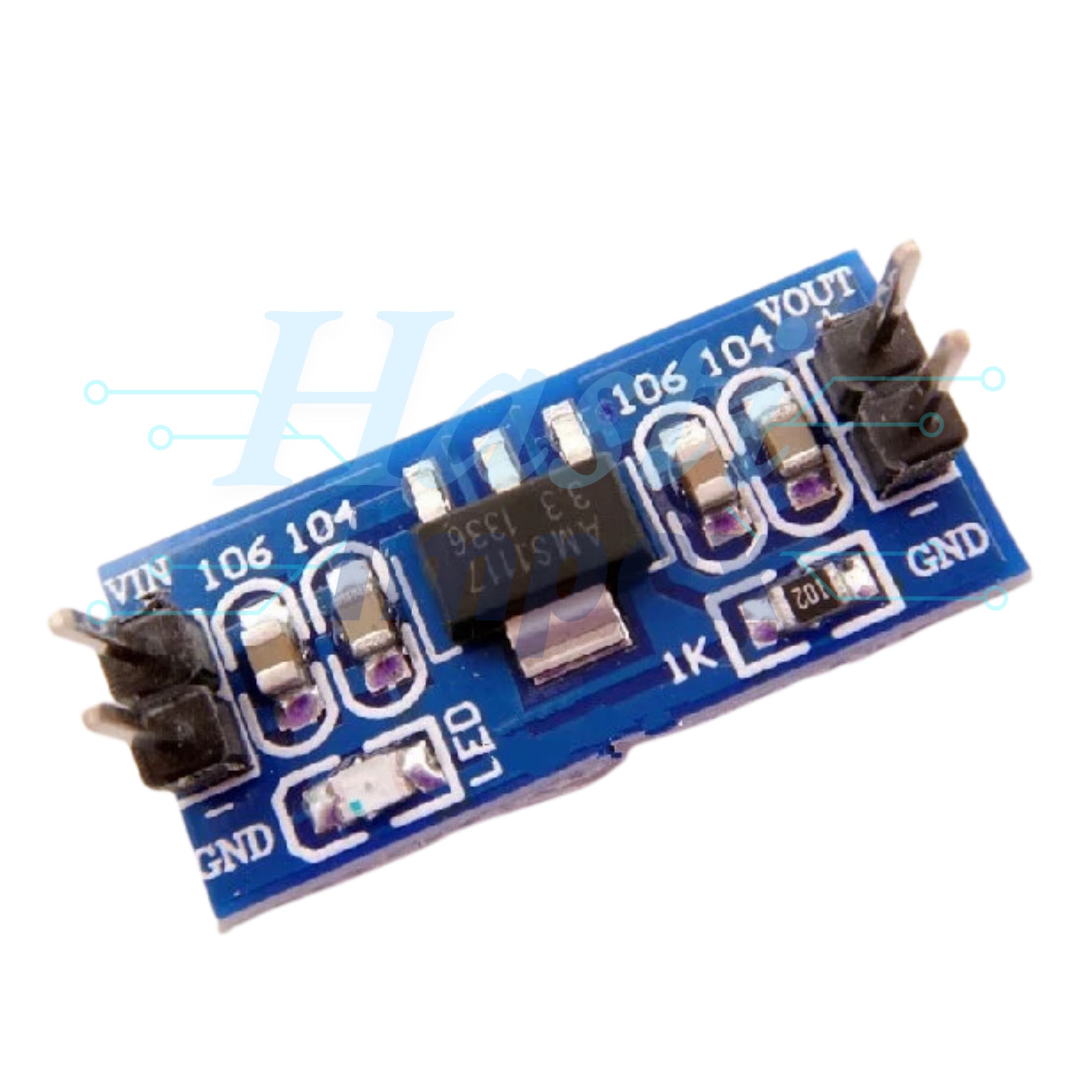

AMS1117 3.3V Power Supply Module
Description:
The AMS1117 3.3V Step Down Power Supply Module is similar to the 5V version described earlier, but it provides a fixed output voltage of 3.3V instead of 5V. Here's a breakdown of its use and features:
-
Voltage Regulation: Like its 5V counterpart, the primary function of the AMS1117 3.3V module is to regulate the input voltage to a fixed output voltage of 3.3V. This is particularly useful when you have a power source with a voltage higher than 3.3V and need to power devices that require a stable 3.3V supply.
-
Step-Down Operation: The term "step-down" indicates that this module is designed to lower the input voltage to the desired output voltage. It operates as a buck converter or voltage regulator.
-
Input Voltage Range: The module typically accepts input voltages higher than 3.3V, but it's crucial to check the specific module's datasheet or documentation for the recommended input voltage range. Exceeding the maximum input voltage could damage the module.
-
Output Current: The module's ability to supply current at 3.3V will depend on the specific design and the heat dissipation capabilities of the module. Ensure that the module can provide sufficient current for your application.
-
Stability and Regulation: Similar to the 5V version, the AMS1117 3.3V module provides good stability and regulation, maintaining the output voltage close to 3.3V even with fluctuations in input voltage or changes in load.
-
Protection Features: Some modules may include protection features such as overcurrent protection, over-temperature protection, and reverse polarity protection to safeguard the circuit and connected devices.
-
Input and Output Connectors: The module typically has input and output connectors or solder pads where you can connect the input power source and the devices requiring a 3.3V supply.
-
Heat Dissipation: Depending on factors such as input voltage, output current, and ambient temperature, the module may generate heat. Adequate heat sinking or ventilation may be necessary for reliable operation, especially for high current applications.
-
Applications: The AMS1117 3.3V Step Down Power Supply Module is used in various electronic projects requiring a stable 3.3V power source, such as powering microcontrollers, sensors, wireless modules, and other digital and analog circuits that operate at 3.3V.
When using the module, adhere to the manufacturer's guidelines and specifications to ensure proper operation and reliability. Additionally, understanding basic concepts of voltage regulation and power supply design will help in effectively utilizing the module in your projects.
