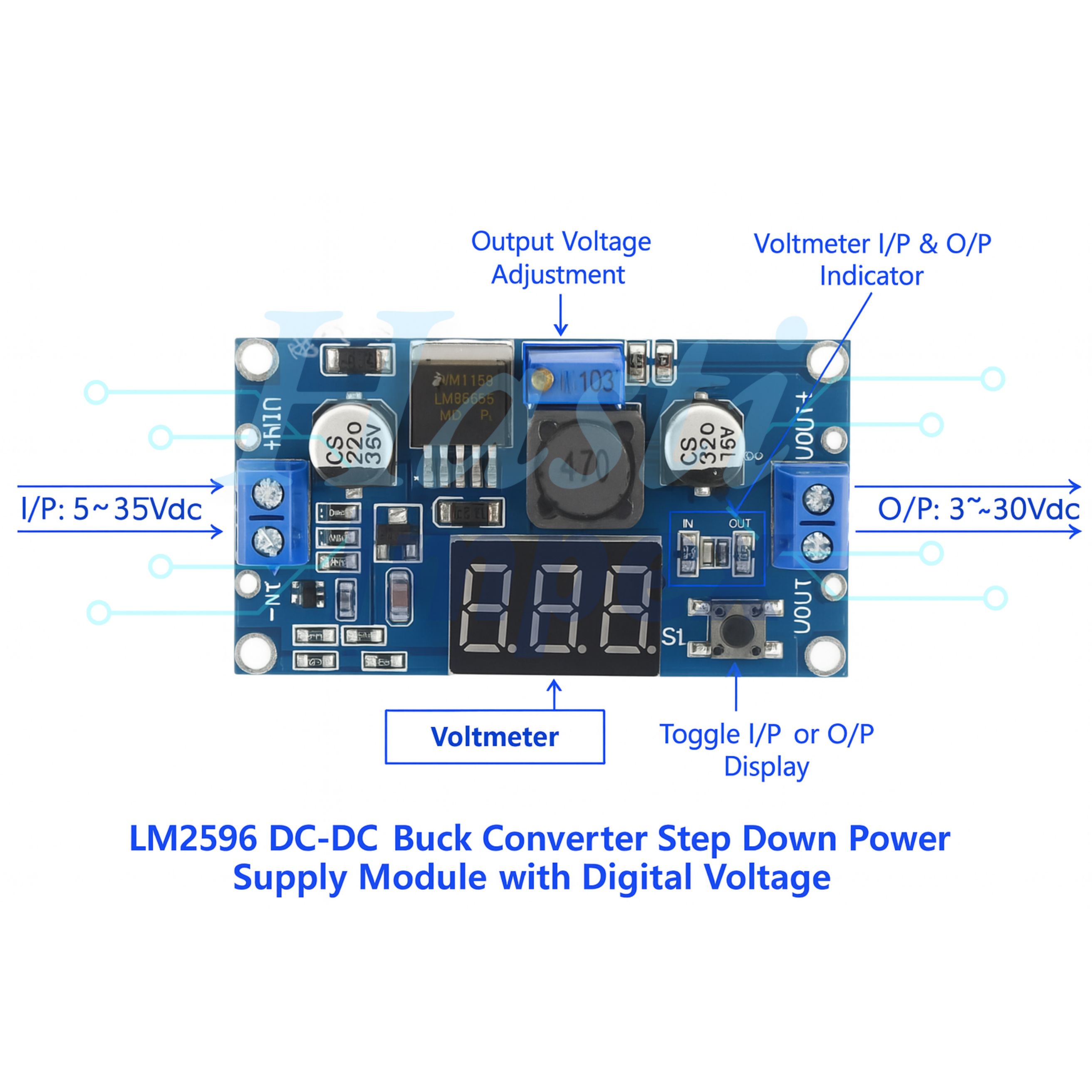

LM2596 DC-DC Buck Converter Step Down Power Supply Module with Digital Voltage Display
Description:
The LM2596 DC-DC Buck Converter Step Down Power Supply Module with Digital Voltage Display is a versatile and compact power supply module commonly used in electronic projects. Here's a description of its typical features:
-
Buck Converter Design: The module is based on the LM2596 buck converter integrated circuit (IC). Buck converters step down the input voltage to a lower output voltage, making them suitable for powering electronic devices that require a lower voltage than the input source.
-
Wide Input Voltage Range: The LM2596 module typically supports a wide input voltage range, making it compatible with various power sources such as batteries, solar panels, or AC-DC adapters.
-
Adjustable Output Voltage: One of the key features of the LM2596 module is its adjustable output voltage. Users can adjust the output voltage to their desired level using a potentiometer (variable resistor) on the module. This feature provides flexibility and allows the module to be used in a wide range of applications.
-

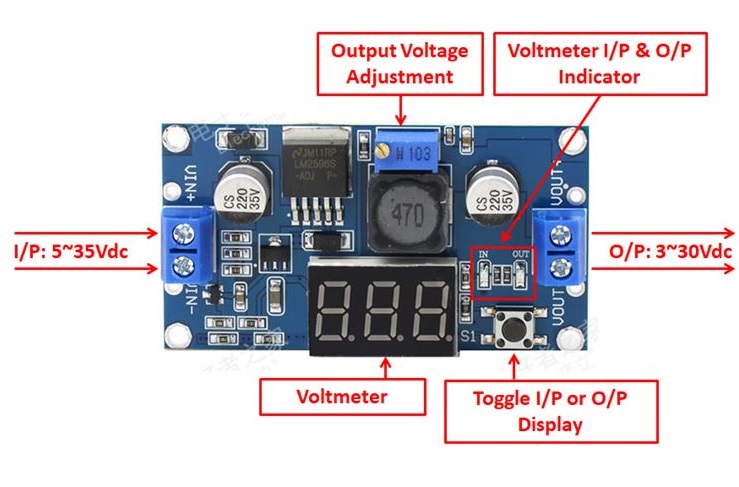

Digital Voltage Display: A notable feature of some LM2596 modules is the inclusion of a digital voltage display. This display shows the output voltage in real-time, allowing users to monitor the voltage level accurately.
-
Efficiency and Heat Dissipation: The LM2596 module is known for its high efficiency, which means it converts input power to output power with minimal losses. However, depending on the input and output voltage difference, the module may generate some heat during operation. Therefore, adequate heat sinking or cooling may be necessary, especially for higher power applications.
-
Protection Features: Some LM2596 modules come with built-in protection features such as over-current protection, over-temperature protection, and reverse polarity protection, which help safeguard the module and connected devices from potential damage.
-
Application: The LM2596 DC-DC Buck Converter Step Down Power Supply Module with Digital Voltage Display is widely used in electronic projects, DIY electronics, prototyping, robotics, automotive applications, and more, where a stable and adjustable power supply is required.
Overall, the LM2596 module offers a convenient and reliable solution for powering electronic devices effici
