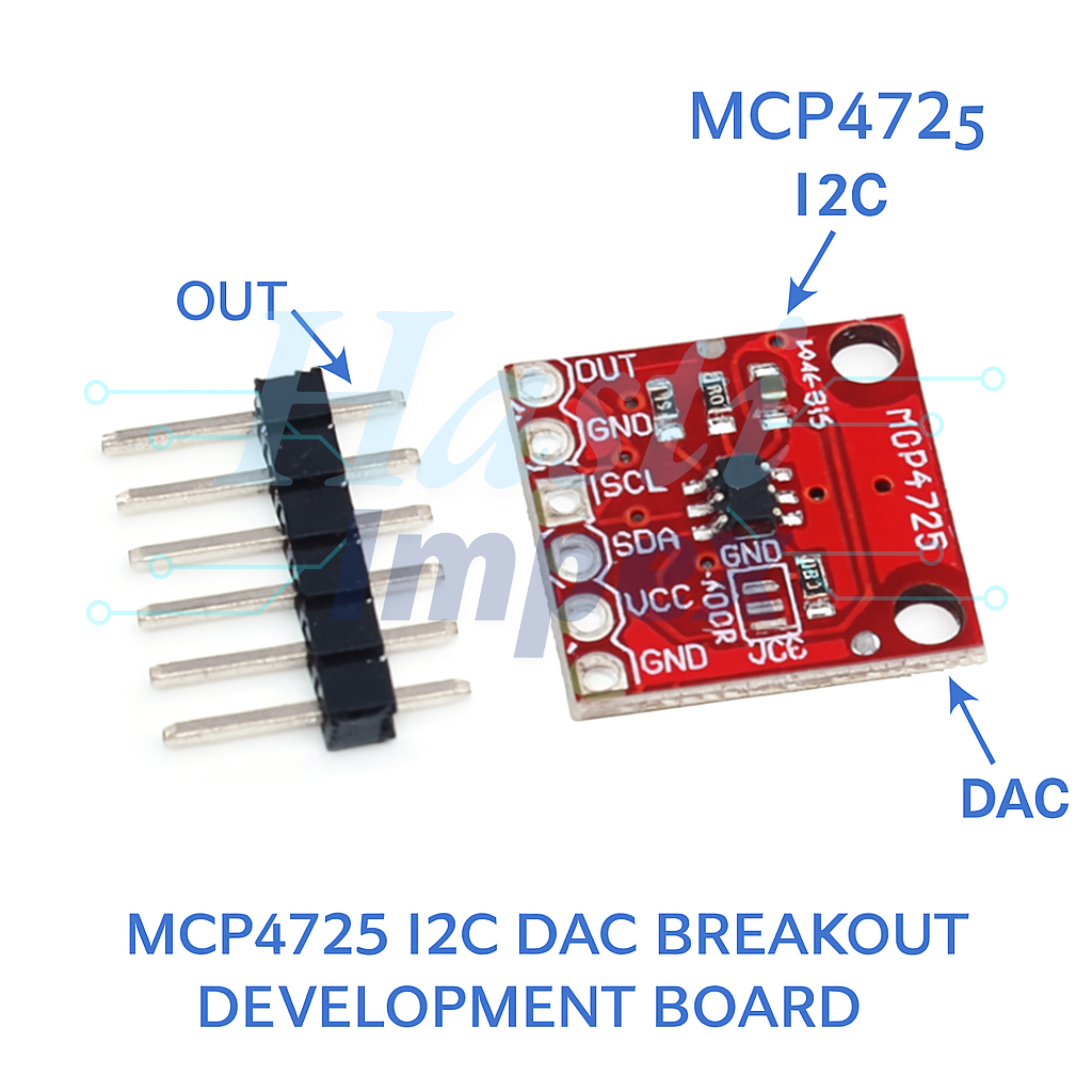

MCP4725 I2C DAC Breakout Development Board
Description:
MCP4725 I2C DAC Breakout Development Board is a high-performance, 12-bit Digital-to-Analog Converter (DAC) based on the MCP4725 IC from Microchip Technology. This compact and easy-to-use development board provides a simple and effective way to convert digital signals into analog voltages in embedded systems, robotics, audio processing, signal generation, and many other applications requiring DAC functionality.
Features:
1. High-Resolution DAC (12-bit)
2. I2C Communication
3. Integrated EEPROM
4. Low Power Consumption
5. Configurable Output Voltage
6. Onboard Voltage Reference
7. Simple Integration and Programming
8. Compact Size
9. Wide Supply Voltage Range
Diagram:
Specifications:
| DAC Resolution | 12-bit |
| I2C Communication | 400kHz |
| Supply Voltage | 2.7V to 5.5V |
| Output Voltage Range | 0V to VCC |
| Current Consumption | Typically < 10mA |
| Output Voltage Accuracy | ±1.5% (typical) |
| Operating Temperature | -40°C to +85°C |
| Operating Frequency | 400kHz |
| Size | 22mm x 18mm |
