TPA3118 PBTL Mono Digital Amplifier Board 1X60W 12V 24V Power Amplifier Module
Description:
TPA3118 PBTL Mono Digital Amplifier Board is a high-performance audio power amplifier module designed to provide clean and efficient amplification for various audio applications. Based on the TPA3118 integrated circuit (IC) from Texas Instruments, this module is capable of delivering up to 60W of power in a PBTL (Parallel Bridge Tied Load) configuration. It supports both 12V and 24V power supplies, making it versatile for use in a variety of systems, including home audio, DIY projects, and automotive applications.
Features:
1. High-Performance TPA3118 IC
2. PBTL (Parallel Bridge Tied Load) Configuration
3. Dual Voltage Support (12V/24V)
4. Efficient Power Delivery
5. Low Total Harmonic Distortion (THD)
6. Built-in Protection Features
7. Compact and Lightweight Design
8. Simple Integration
9. Adjustable Volume Control (Optional)
10. Versatile Applications

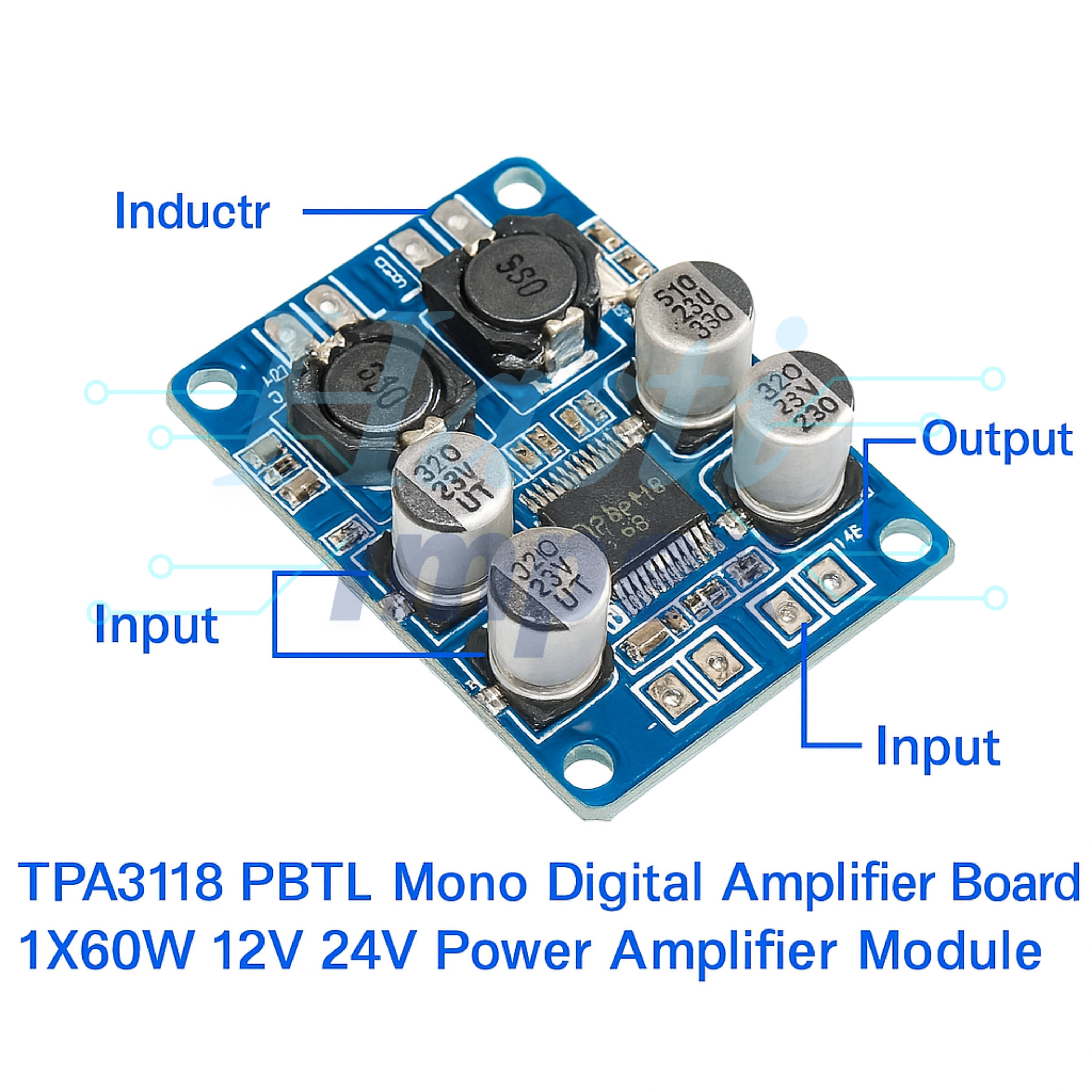

Diagram:
Specifications:
| IC Chip | TPA3118 |
| Power Output | Up to 60W |
| Operating Voltage | 12V – 24V DC |
| Efficiency | ~90% |
| THD (Total Harmonic Distortion) | < 0.1% |
| Impedance | 4Ω |
| Working Temperature Range | -40°C to +85°C |
