LM35D Analog Temperature Sensor Module
Description:
The LM35D Analog Temperature Sensor Module is based on the LM35 precision integrated-circuit temperature sensor, which provides an accurate analog voltage output proportional to the temperature in Celsius. Here's how to use and understand it:

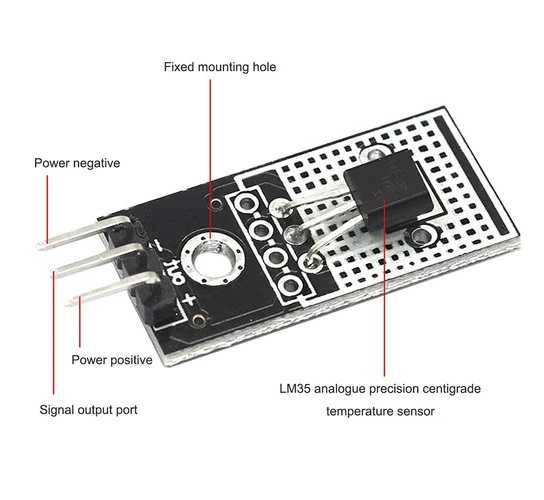

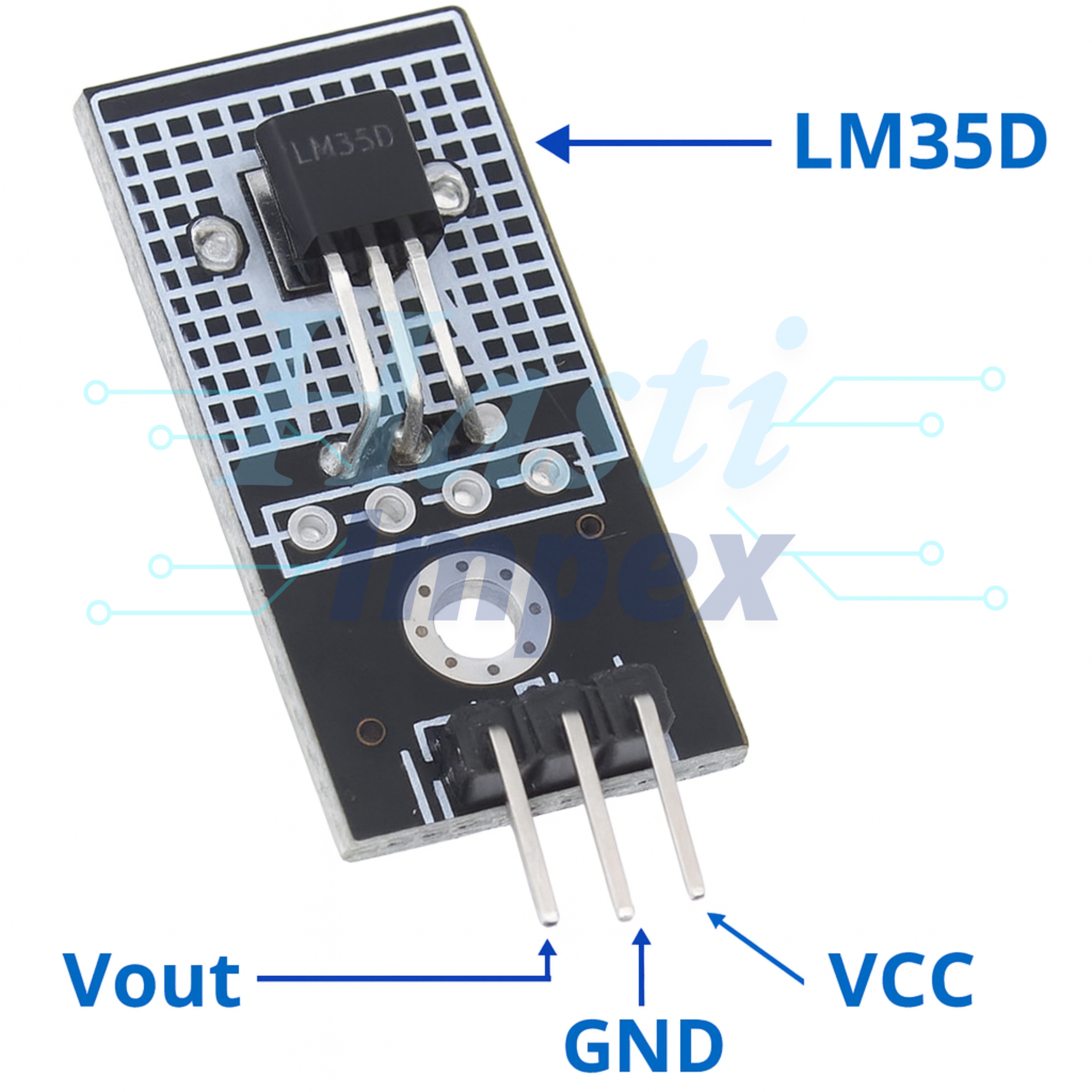

1. **Wiring Connections**: The LM35 module typically has three pins: VCC (power supply), GND (ground), and OUT (analog output). Connect the VCC pin to a suitable power source (e.g., 5V), the GND pin to the ground, and the OUT pin to an analog input pin on your microcontroller or other devices.
2. **Temperature Measurement**: The LM35 sensor measures temperature directly in Celsius and provides an analog voltage output proportional to the temperature. The output voltage changes linearly with temperature, with a scale factor of 10 mV/°C. For example, at 25°C, the output voltage would be 250 mV (0.25V).
3. **Calibration**: The LM35 sensor is calibrated by the manufacturer and does not require additional calibration in typical applications. However, for high-precision applications, you may need to calibrate the sensor against a known reference temperature to account for any inaccuracies.
4. **Temperature Range**: The LM35 sensor can measure temperatures in the range of -55°C to +150°C, making it suitable for a wide range of applications.
5. **Accuracy**: The LM35 sensor offers high accuracy, typically ±0.5°C at room temperature. This level of accuracy makes it suitable for applications where precise temperature measurements are required.
6. **Applications**: The LM35 sensor module can be used in various applications, including:
- Environmental monitoring: Monitoring temperature in indoor or outdoor environments.
- HVAC systems: Controlling heating, ventilation, and air conditioning systems based on temperature readings.
- Industrial automation: Monitoring temperature in industrial processes and equipment.
- Consumer electronics: Ensuring proper thermal management in devices such as computers, laptops, and smartphones.
7. **Signal Conditioning**: Since the LM35 sensor provides an analog voltage output, you may need to perform signal conditioning, such as amplification or filtering, depending on your specific application requirements.
8. **Safety Precautions**: Handle the LM35 sensor module and connected components with care to prevent damage. Ensure that the power supply voltage is within the specified range to avoid damaging the sensor.
By understanding how the LM35D Analog Temperature Sensor Module works and following these usage guidelines, you can effectively incorporate temperature sensing capabilities into your projects for temperature monitoring and control.
