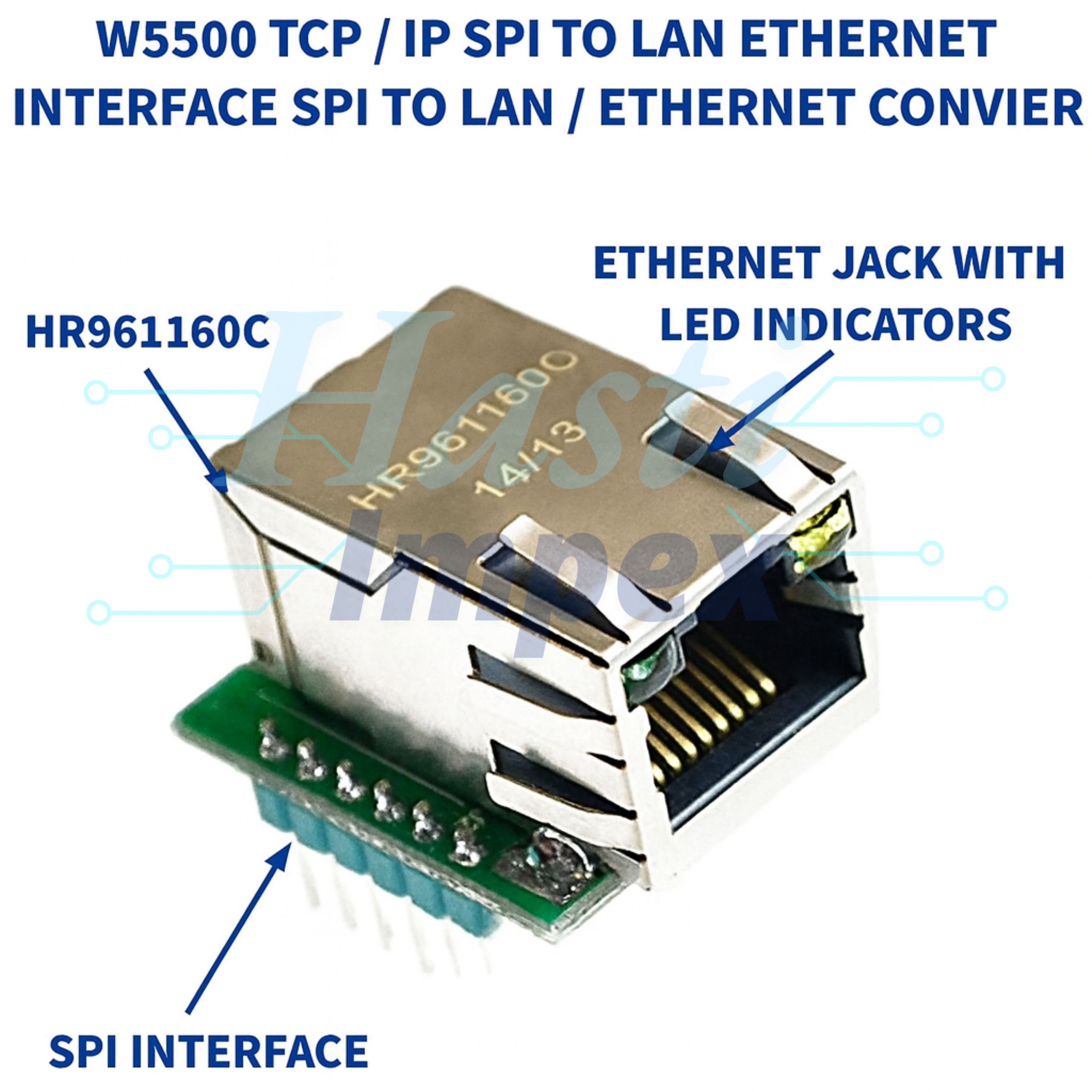

W5500 TCP / IP SPI to LAN Ethernet Interface SPI to LAN / Ethernet Converter
Description:
W5500 TCP/IP SPI to LAN Ethernet Interface is a compact and efficient hardware solution that enables devices with an SPI (Serial Peripheral Interface) connection to communicate over a standard Ethernet LAN (Local Area Network) connection. The W5500 chip, manufactured by Wiznet, serves as the core of this converter, providing reliable and high-performance Ethernet connectivity. Here's a detailed explanation of its key features and functions:
Features:
1. Ethernet Controller
2. SPI Interface
3. TCP/IP Stack Support
4. Sockets and Protocol Support
5. Low Power Consumption
6. Integrated Buffers
7. Easy Integration
8. Real-Time Networking
Specifications:
| Chipset | PL2303 TA |
| Interface | USB 2.0 Full-Speed (12Mbps) |
| Data Rates Supported | 300 bps to 1 Mbps |
| Signal Level | TTL (3.3V or 5V) or RS232 |
| Voltage Range | TTL: 3.3V or 5V, RS232: ±12V |
| Operating Voltage | 5V |
| Current Consumption | Typically 30mA |
| Operating Temperature | -40°C to 85°C |
| Connector Type | DB9 (RS232) or 4-pin |
