ZMPT101B AC Single Phase Voltage Sensor Module
Description:
ZMPT101B AC Single Phase Voltage Sensor Module is an essential component for measuring AC voltages in single-phase electrical systems. It is widely used in various applications such as energy monitoring, power systems, home automation, and safety systems. The module allows users to measure the AC voltage from a live wire and provides a corresponding output that can be processed by a microcontroller or other digital devices, making it an invaluable tool for both industrial and consumer-grade applications.
Features:
1. Single Phase AC Voltage Measurement
2. High Accuracy and Precision
3. Safety Features
4. Analog Output
5. Voltage Measurement Range
6. Adjustable Output Sensitivity
7. Easy to Use and Integrate
8. Power Supply

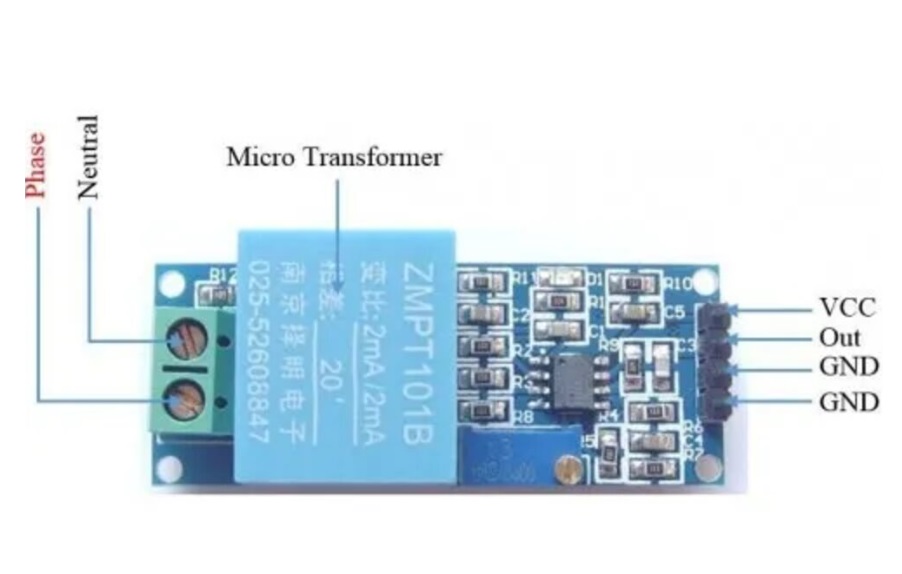

Diagram:
Specifications:
| Input Voltage | AC 0V-250V |
| Operating Voltage | 5V DC or 3.3V DC |
| Output Type | Analog-to-Digital Converter (ADC) |
| Frequency Range | 50Hz or 60Hz |
| Output Voltage Range | 0V to 5V |
| Power Supply: | 5V DC |
| Response Time | real-time voltage |
| Size | 45mm x 28mm |
| Temperature Range | -40°C to +85°C |
