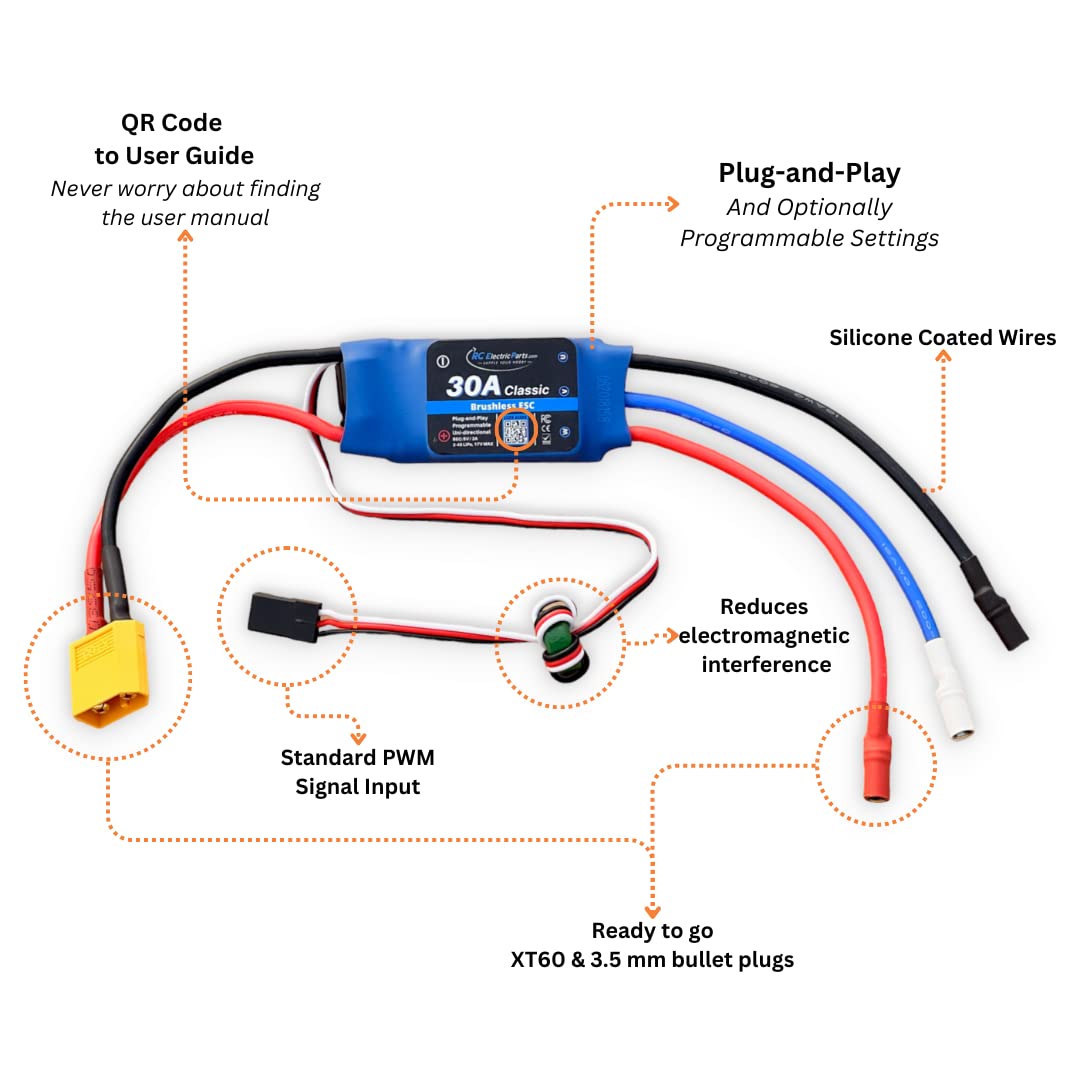

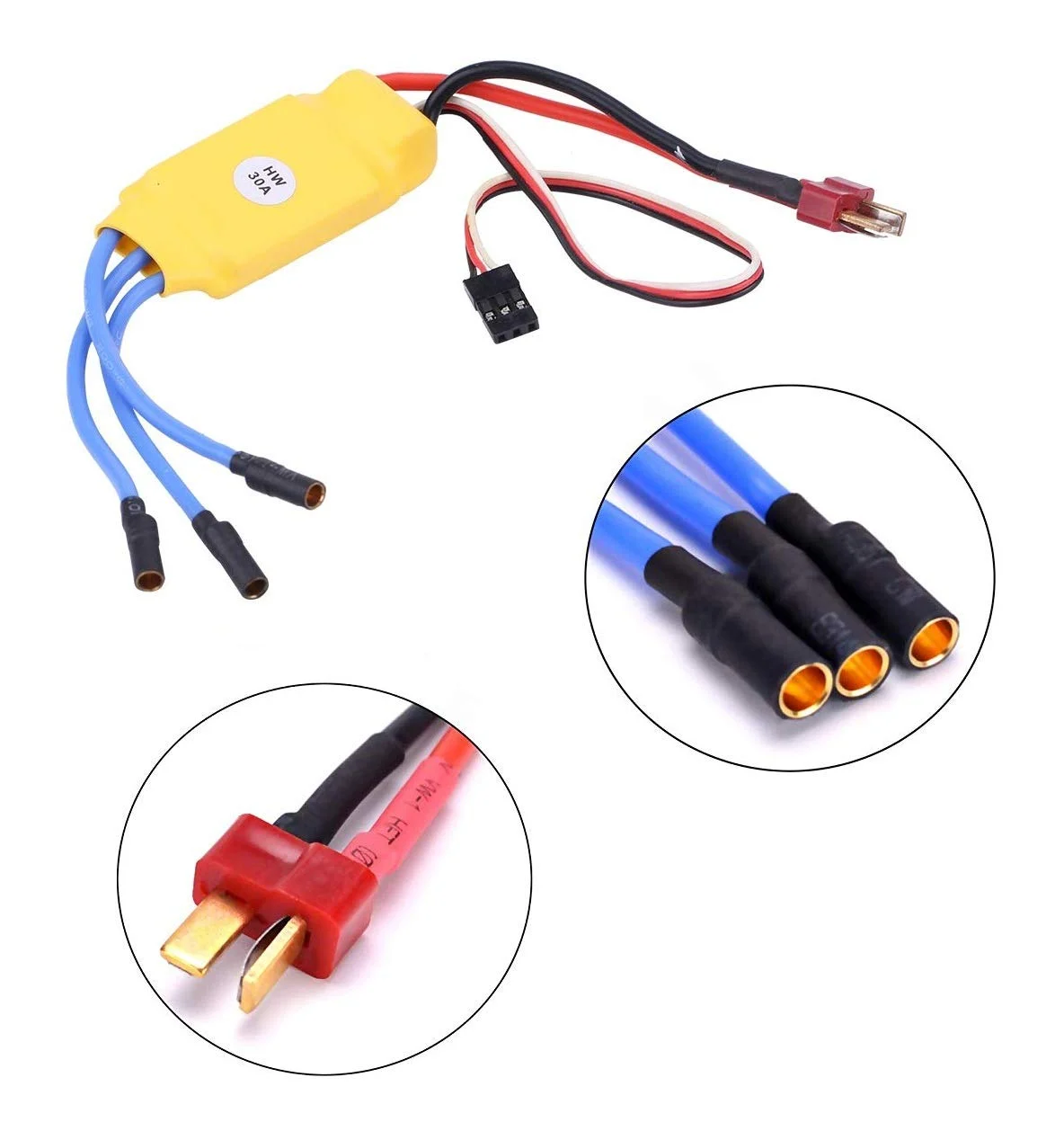

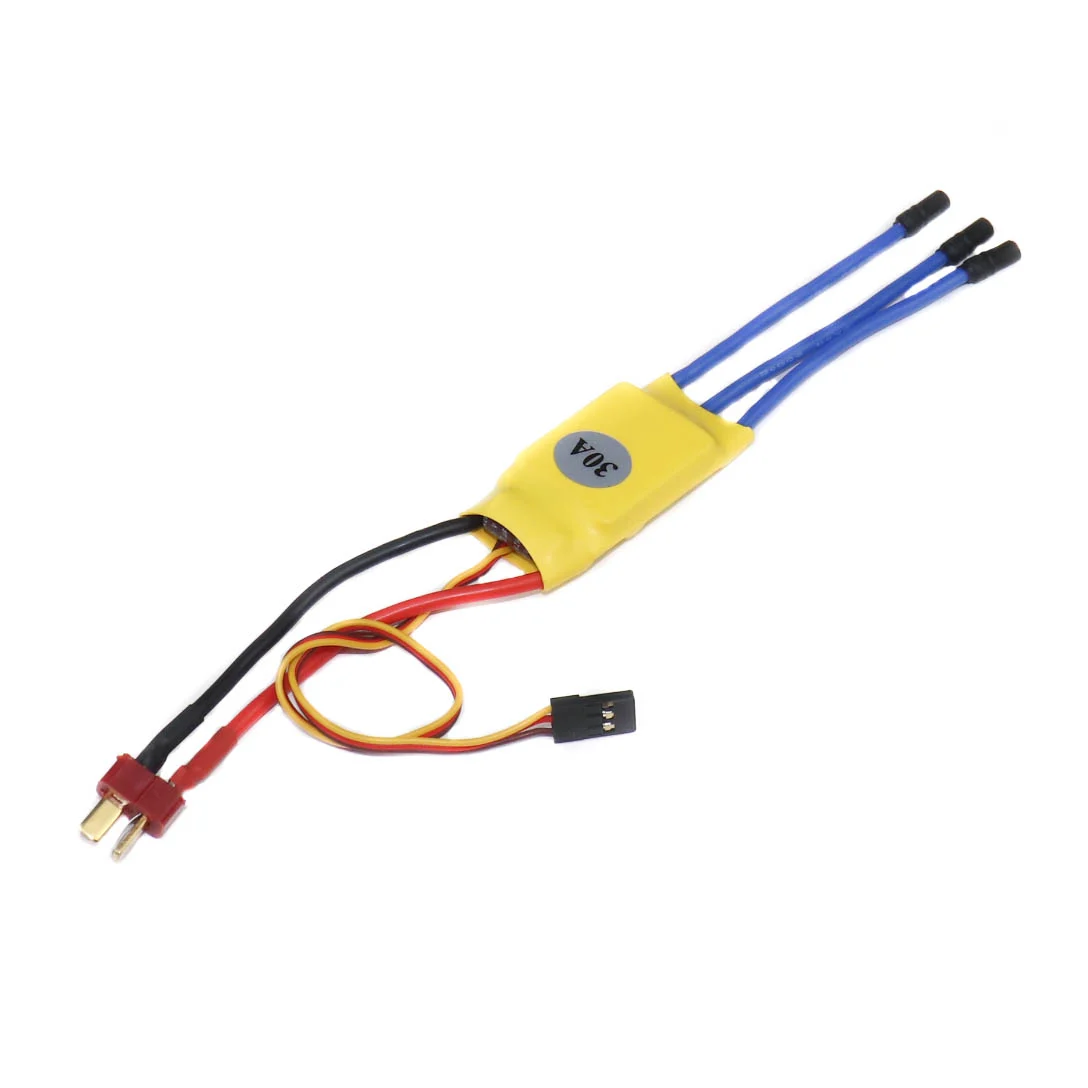

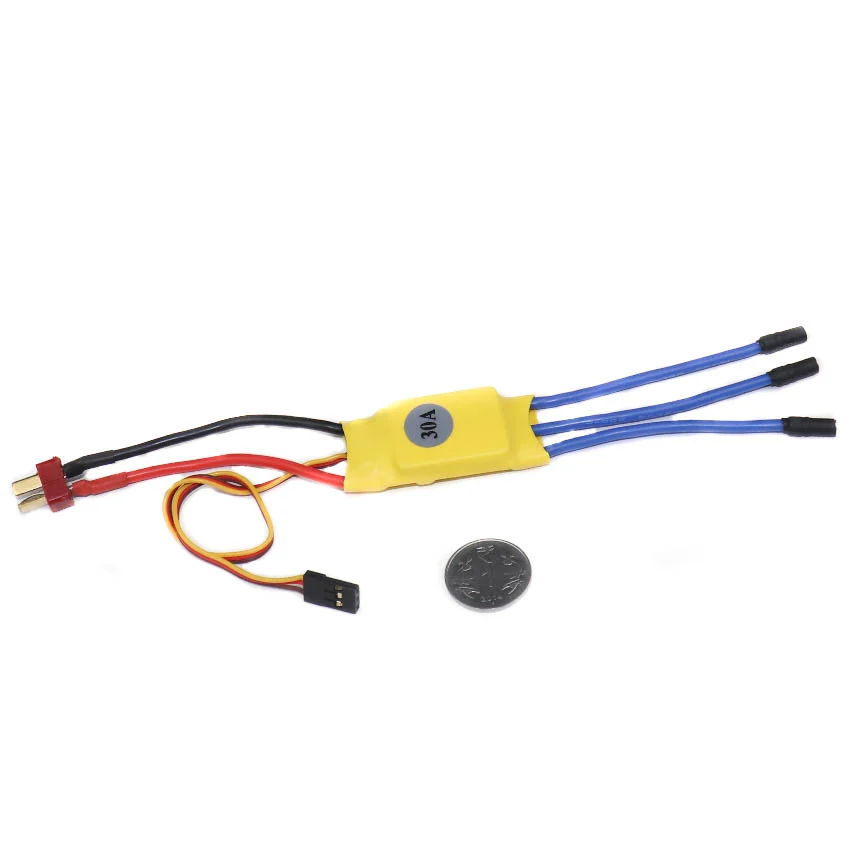

Description:
A 30A BLDC (Brushless Direct Current) Electronic Speed Controller (ESC) is a device used to control the speed and direction of brushless DC motors. Here's how it's used and its features:
Use:
-
Motor Control: The primary function of a BLDC ESC is to control the speed and direction of brushless DC motors. It does this by modulating the power supplied to the motor windings based on input signals from a controller, such as a microcontroller or radio receiver.
-
RC Vehicles: BLDC ESCs are commonly used in remote-controlled (RC) vehicles such as drones, airplanes, helicopters, cars, boats, and robots. They allow precise control of motor speed, enabling maneuvers like acceleration, deceleration, and steering.
-
Industrial Applications: BLDC ESCs are also used in various industrial applications where precise motor control is required, such as CNC machines, robotics, electric scooters, and electric bicycles.
-
DIY Projects: Hobbyists and makers often use BLDC ESCs in DIY projects involving motorized systems, such as motorized camera gimbals, RC planes, quadcopters, and other robotic projects.
Features:
-
Current Rating: The 30A rating indicates the maximum continuous current that the ESC can handle without overheating or sustaining damage. It's essential to choose an ESC with a current rating suitable for the motor's requirements.
-
Voltage Range: BLDC ESCs typically support a specific voltage range, such as 2S to 4S LiPo (7.4V to 14.8V) for RC applications. It's crucial to match the ESC's voltage range with the battery voltage to ensure compatibility.
-
PWM Input: BLDC ESCs are usually controlled via Pulse Width Modulation (PWM) signals generated by a compatible controller, such as an RC transmitter/receiver or a microcontroller. The ESC interprets the PWM signals to determine the desired motor speed and direction.
-
BEC (Battery Eliminator Circuit): Some BLDC ESCs include a built-in BEC to supply power to the receiver or other auxiliary devices in an RC system. The BEC voltage is typically regulated to provide a stable voltage output.
-
Programming Options: Many BLDC ESCs offer programming options that allow users to customize parameters such as throttle response, braking strength, motor timing, and low-voltage cutoff. Programming is often done using a programming card or software interface.
-
Protection Features: ESCs may include protection features such as over-current protection, over-temperature protection, and low-voltage cutoff to prevent damage to the ESC and motor.
-
Size and Form Factor: BLDC ESCs come in various sizes and form factors to accommodate different applications. They may be in the form of standalone modules or integrated into motor control boards.
-
Motor Compatibility: It's essential to ensure that the BLDC ESC is compatible with the specific type and size of the brushless motor being used. Matching the ESC to the motor's specifications ensures optimal performance and efficiency.
Overall, a 30A BLDC ESC is a versatile and essential component for controlling brushless DC motors in a wide range of applications, offering precise speed control, reliability, and protection features.
